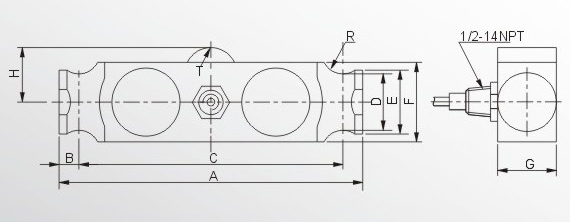

量程 | 尺寸mm | |||||||||
Klb | A | B | C | D | E | F | G | H | R | T |
25~40 | 210.2 | 12.8 | 184.3 | 41.5 | 51.0 | 62.2 | 49.5 | 44.4 | 12.8 | 12.8 |
50~75 | 292.2 | 19.2 | 254.2 | 43.3 | 56.0 | 74.8 | 49.5 | 51.0 | 19.2 | 25.5 |
100~125 | 368.2 | 25.5 | 317.3 | 62.0 | 81.5 | 98.1 | 73.5 | 70.0 | 25.5 | 38.2 |
主 要 技 術 指 標Main Description | |||
測量范圍Capacity | 25、40、50、60、75、100、125 | kg | |
輸出靈敏度Rated Output | 3．0±0.010 | mV/V | |
非線性Linear | ±0.03 | %F.S | |
滯后Hysteresis | ±0.03 | %F.S | |
重復性Reapeatability | ±0.01 | %F.S | |
蠕變Creep | ±0.03 | %F.S | |
零點輸出Zero Balance | ≤±1.0 | %F.S | |
溫度補償范圍 Conpensated Temperature Range | 室溫～+60 | ℃ | |
零點溫度補償系數Temperature Effect On Zero | ±0.03 | %F.S/10 ℃ | |
額定輸出溫度系數 Temperature Effect On Output | ±0.03 | %F.S/10 ℃ | |
供橋電壓 Excitation Voltage | 10V | AC/DC | |
絕緣電阻Insulation Resistence | ≥5000 | MΩ/100VDC | |
輸入電阻 Input Resistence | 770±8 | Ω | |
輸出電阻Output Resistence | 700±2 | Ω | |
允許過載系數Safe Overload | 120 | %F.S | |
電纜連接方式Cable Connection | 信號輸出Singal Output： 黃:Yellow (+) 黑:Black (－) | ||
供橋電壓Excitation Voltage： 紅Red: (+) 綠Green： （－） | |||
