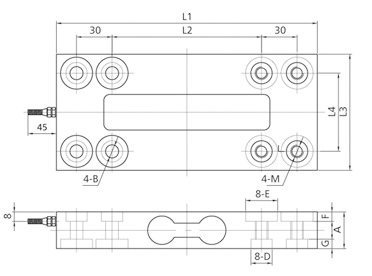

量程 | 尺寸 | ||||||||||
kg | A | B | D | E | F | G | M | L1 | L2 | L3 | L4 |
50~100 | 25.0 | Φ9 | Φ18 | Φ18 | 8.0 | 8.0 | M8 | 200.0 | 110.0 | 80.0 | 56.0 |
150 | 27.0 | Φ11 | Φ18 | Φ27 | 8.0 | 8.0 | M10 | 220.0 | 126.0 | 98.0 | 66.0 |
300 | 31.0 | Φ11 | Φ18 | Φ27 | 8.0 | 8.0 | M10 | 220.0 | 126.0 | 98.0 | 66.0 |
500~700 | 36.0 | Φ11 | Φ18 | Φ27 | 8.0 | 8.0 | M10 | 220.0 | 126.0 | 98.0 | 66.0 |
1000 | 47.0 | Φ13 | Φ22 | Φ27 | 10.0 | 10.0 | M12 | 220.0 | 126.0 | 98.0 | 66.0 |
主 要 技 術 指 標Main Description | |||
測量范圍Capacity | 50、100、150、300、500、700、1000 | kg | |
輸出靈敏度Rated Output | 2．0±0.20 | mV/V | |
非線性Linear | ±0.02 | %F.S | |
滯后Hysteresis | ±0.02 | %F.S | |
重復性Reapeatability | ±0.01 | %F.S | |
蠕變Creep | ±0.02 | %F.S | |
零點輸出Zero Balance | ≤±1.0 | %F.S | |
溫度補償范圍 Conpensated Temperature Range | 室溫～+60 | ℃ | |
零點溫度補償系數Temperature Effect On Zero | ±0.02 | %F.S/10 ℃ | |
額定輸出溫度系數 Temperature Effect On Output | ±0.02 | %F.S/10 ℃ | |
供橋電壓 Excitation Voltage | 10V | AC/DC | |
絕緣電阻Insulation Resistence | ≥5000 | MΩ/100VDC | |
輸入電阻 Input Resistence | 3410±5 | Ω | |
輸出電阻Output Resistence | 350±2 | Ω | |
允許過載系數Safe Overload | 120 | %F.S | |
電纜連接方式Cable Connection | 信號輸出Singal Output： 黃:Yellow (+) 黑:Black (－) | ||
供橋電壓Excitation Voltage： 紅Red: (+) 綠Green： （－） | |||
