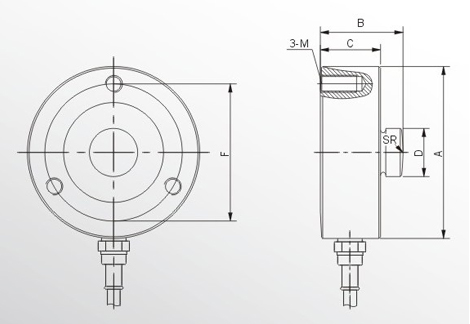

量程 | 尺寸mm | ||||||
t | A | B | C | D | F | SR | M |
2.5~15Se | 82.0 | 44.0 | 31.0 | 22.0 | 70.0 | 120.0 | M8 |
15~30Se | 100.0 | 48.5 | 35.0 | 28.0 | 80.0 | 120.0 | M10 |
30 | 126.0 | 54.0 | 40.0 | 35.0 | 90.0 | 120.0 | M12 |
主 要 技 術 指 標Main Description | ||
測量范圍Capacity | 0.1~7.5、10~25、50、60~100 0.2~15、25~50、100、150~200 | kg |
輸出靈敏度Rated Output | 2.0±0.010 4.0±0.010 | mV/V |
非線性Linear | ±0.03 | %F.S |
滯后Hysteresis | ±0.03 | %F.S |
重復性Reapeatability | ±0.03 | %F.S |
蠕變Creep | ±0.02 | %F.S |
零點輸出Zero Balance | ≤±1.0 | %F.S |
溫度補償范圍 Conpensated Temperature Range | 室溫～+60 | ℃ |
零點溫度補償系數(shù)Temperature Effect On Zero | ±0.02 | %F.S/10 ℃ |
額定輸出溫度系數(shù) Temperature Effect On Output | ±0.02 | %F.S/10 ℃ |
供橋電壓 Excitation Voltage | 10V | AC/DC |
絕緣電阻Insulation Resistence | ≥5000 | MΩ/100VDC |
輸入電阻 Input Resistence | 385±10 765±10 | Ω |
輸出電阻Output Resistence | 350±2 700±5 | Ω |
允許過載系數(shù)Safe Overload | 120 | %F.S |
電纜連接方式Cable Connection | 信號輸出Singal Output： 黃:Yellow (+) 黑:Black (－) | |
供橋電壓Excitation Voltage： 紅Red: (+) 綠Green：（－） | ||
